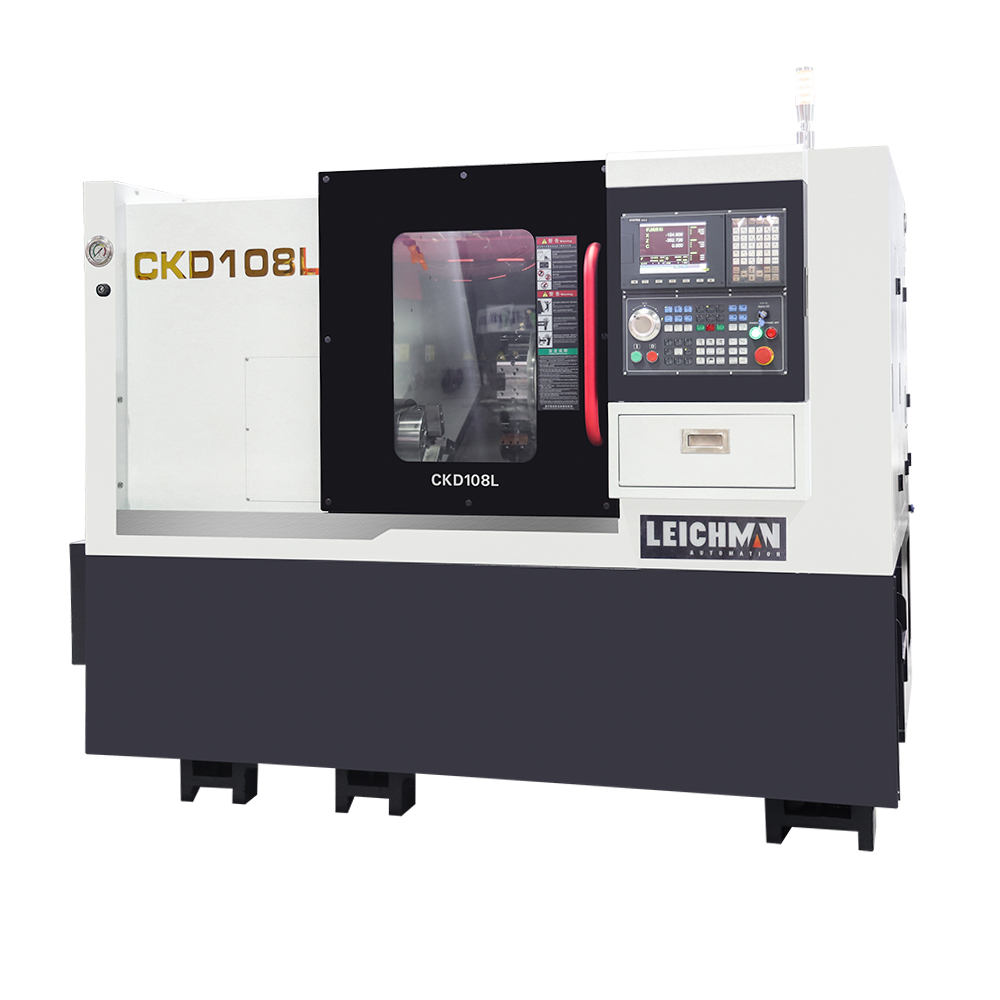

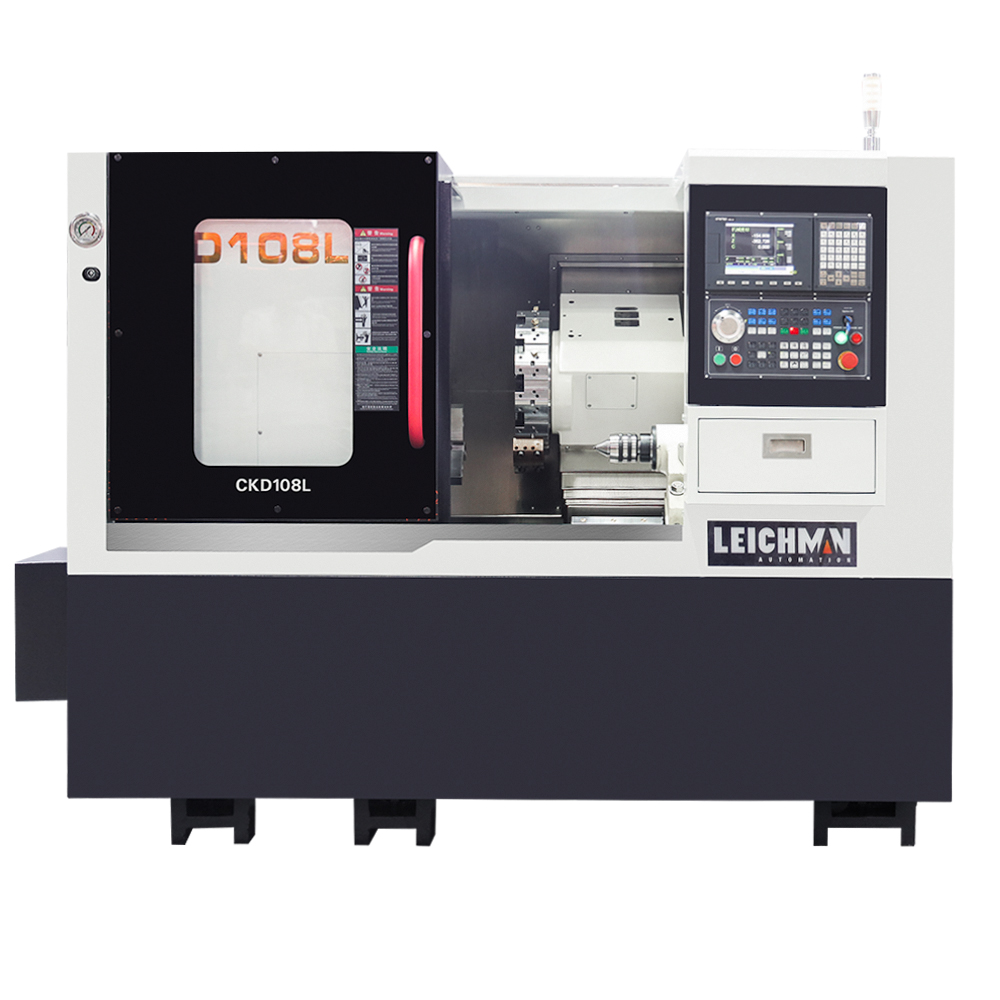

CKD108L CNC Turret Lathe control system adopts Taiwan SYNTEC system as the standard configuration
| Specification | Unit | CKD106L | CKD108L | CKD110L | |
| CAPACITY | Max. swing over bed | mm | 500 | 500 | 500 |
| Max. machining diameter | mm | 400 | 400 | 400 | |
| Max. machining length | mm | 580 | 580 | 580 | |
| TRAVEL | X axis travel | mm | 250 | 250 | 250 |
| Z axis travel | mm | 600 | 600 | 600 | |
| PRECISION | Spindle runout | mm | 0.004 | 0.003 | 0.004 |
| X/Z axis positioning precision | mm | – | X: 0.004/Z: 0.006 | – | |
| X/Z axis repositioning precision | 0.002 | X: 0.002/Z: 0.004 | 0.002 | ||
| SPINDLE | Spindle speed | rpm | 5000 | 4000 | 3000 |
| Chuck diameter | inch | 6’’ | 8’’ | 10’’ | |
| Spindle nose | – | A2-5 | A2-6 | A2-8 | |
| Spindle bore | mm | 56 | 66 | 86 | |
| Max bar diameter | mm | 45 | 52 | 76 | |
| TURRET | Type | – | 100 center height, 400 cutter head, 12 position servo turret | 100 center height, 400 cutter head, 12 position servo turret | 100 center height, 400 cutter head, 12 position servo turret |
| Outer Shank diameter | – | 25 | 25 | 25 | |
| Inner shank diameter | – | 40 | 40 | 40 | |
| TAILSTOCK | Tail stock shaft diameter | mm | 80 | 80 | 80 |
| Tail stock shaft taper | – | MT5 | MT5 | MT5 | |
| Tail stock travel (manual) | mm | 480 | 480 | 480 | |
| Tail stock shaft movement | mm | 100 | 100 | 100 | |
| RAPID SPEED | X axis rapid speed | m/min | 24 | 30 | 24 |
| Z axis rapid speed | m/min | 24 | 30 | 24 | |
| MOTOR POWER | Spindle | kW | 7.5 | 11 | 11 |
| X axis servo motor | kW | 2.4 | 2.4 | 2.4 | |
| Z axis servo motor | kW | 2.4 | 2.4 | 2.4 | |
| OTHERS | Machine size (LxWxH) | mm | 2440x1700x1800 | 2440x1700x1800 | 2440x1700x1800 |
| Net Weight | kg | 3800 | 3800 | 4000 | |
A high-speed, high-precision, and rigid full-function CNC lathe designed for efficient machining of small and medium-sized precision parts in industries such as automotive, electronics, aerospace, medical devices, and instrumentation.
Submit your machining requirements for a custom solution proposal within 24 hours.
A high-speed, high-precision, and rigid full-function CNC lathe designed for efficient machining of small and medium-sized precision parts in industries such as automotive, electronics, aerospace, medical devices, and instrumentation.
