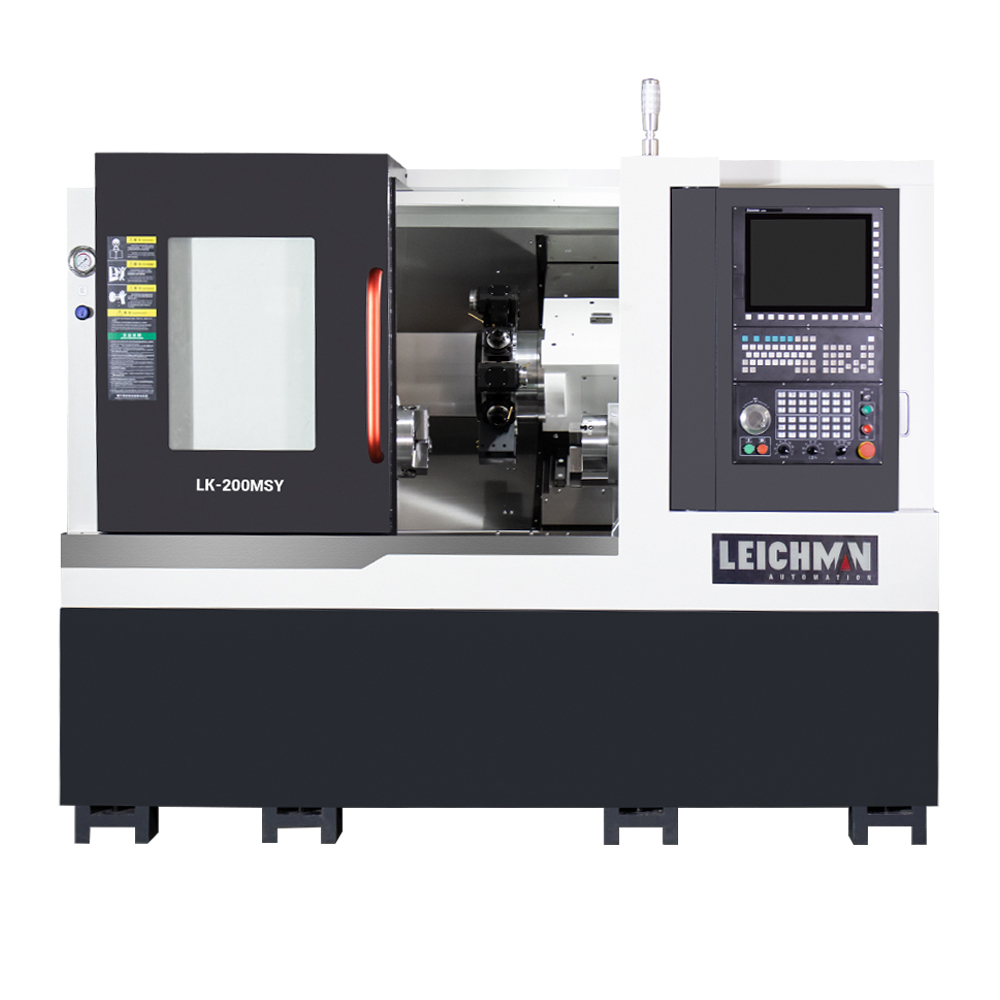

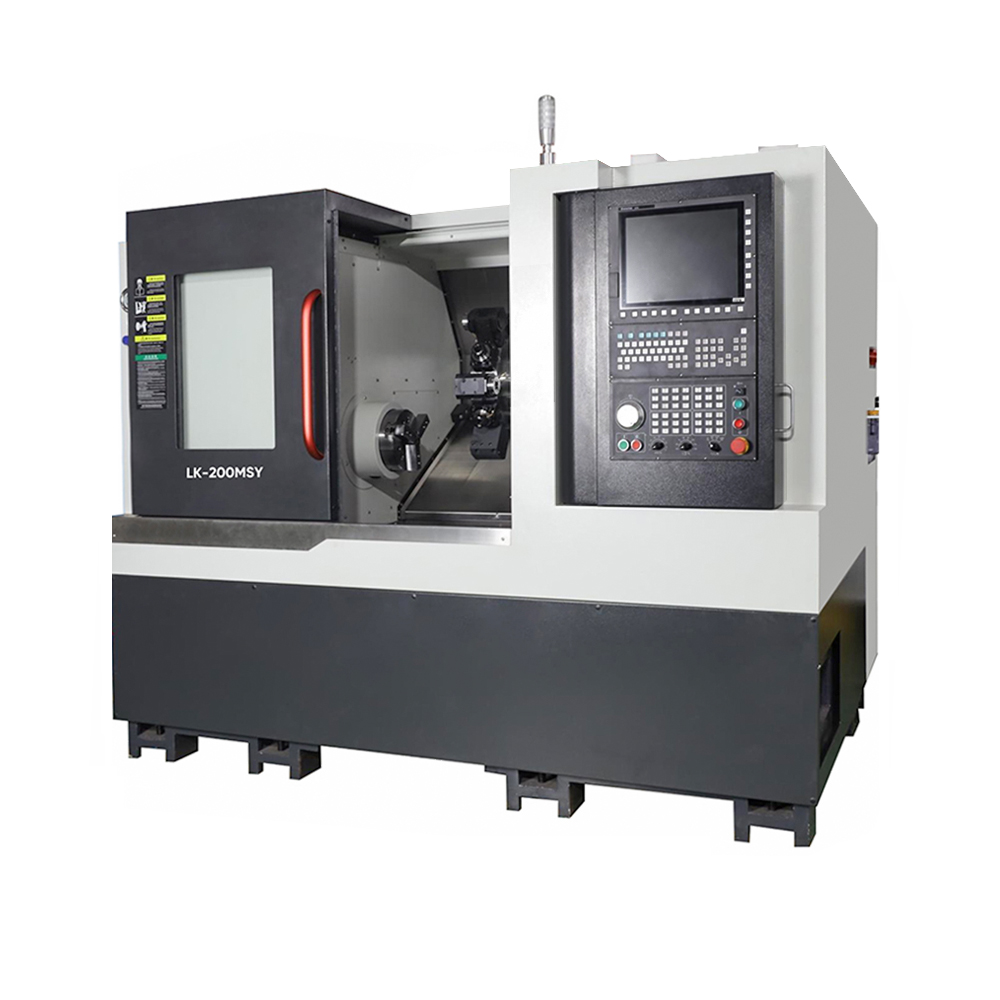

A self-developed high-performance machine tool designed for efficient precision machining of small and medium-sized parts in industries such as automotive, electronics, aerospace, medical devices, and instrumentation.

Key Features:

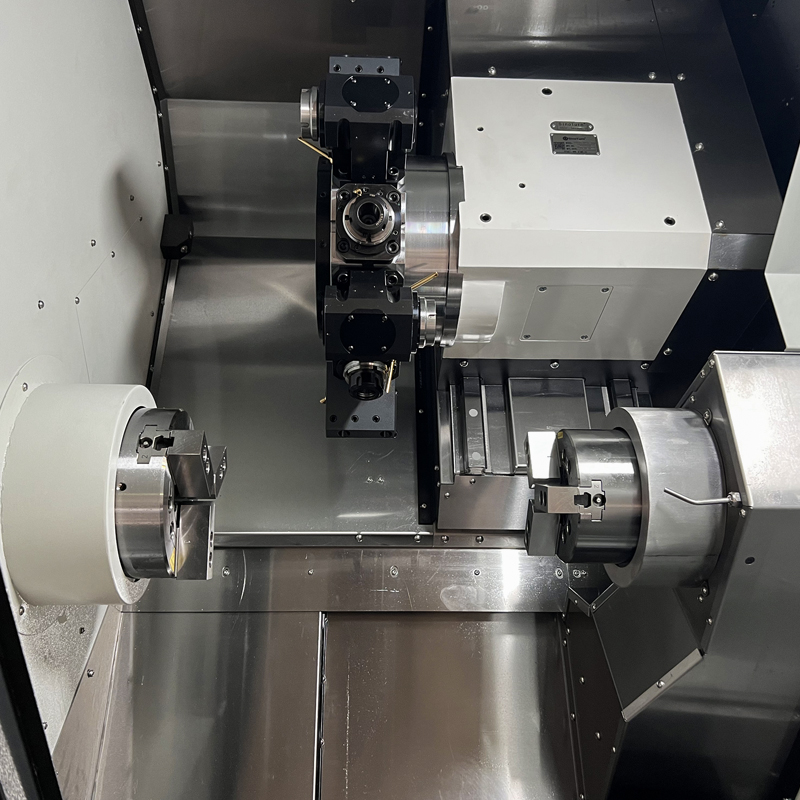

• • Dual Spindle & Y-Axis: Supports complex machining operations with dual spindles and Y-axis interpolation for multi-sided processing.
  • Electric Spindle: High-power, high-torque, and high-speed built-in motorized spindle equipped with Japan NSKP4-grade precision bearings for exceptional accuracy and efficiency.

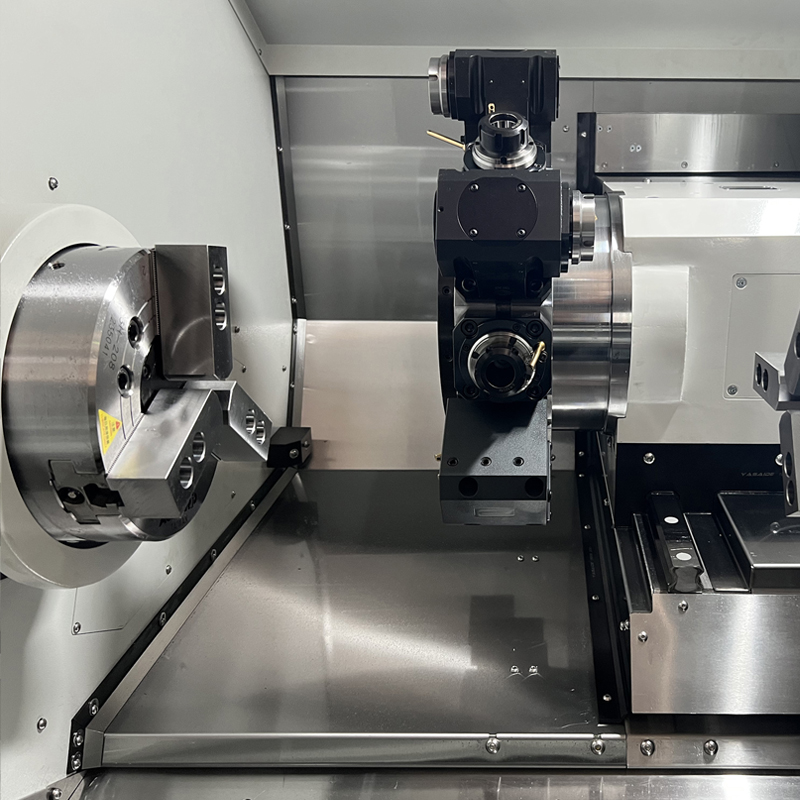

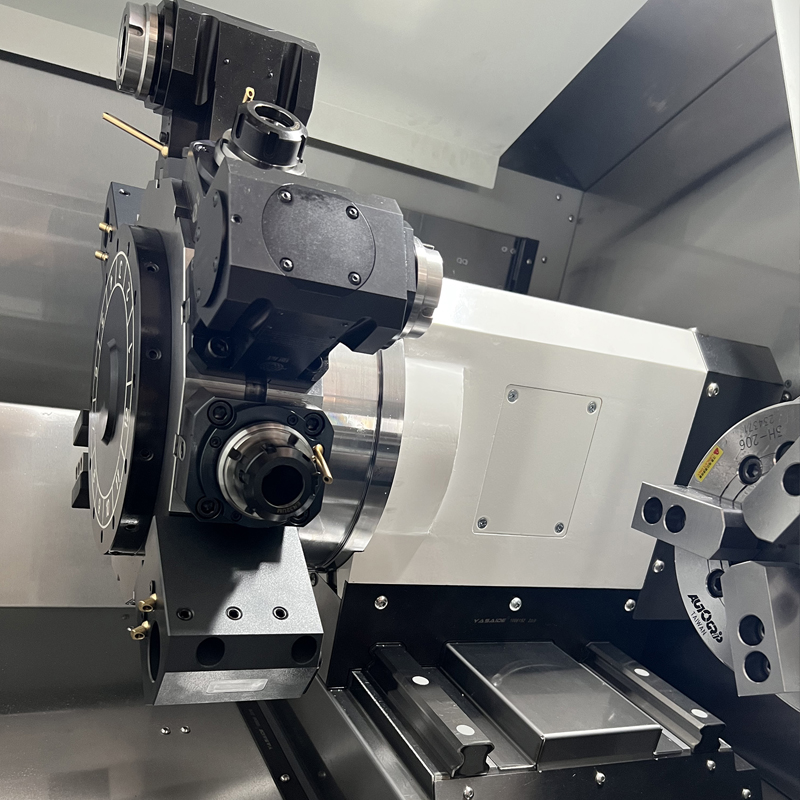

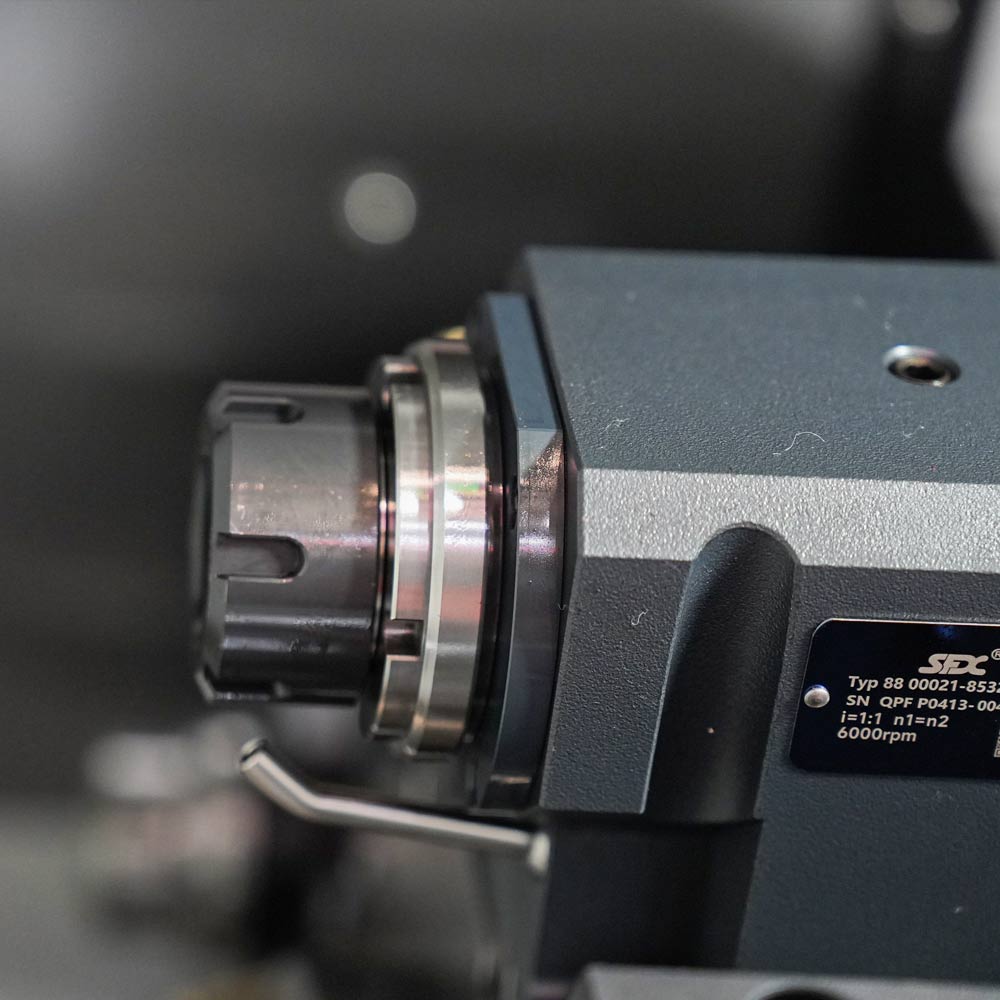

  • Integrated Turret: 12-station BT55 servo-powered turret with servo motor indexing, ratchet positioning, and hydraulic locking. Features oil-air lubrication to reduce heat rise and withstands 70kg cooling pressure.

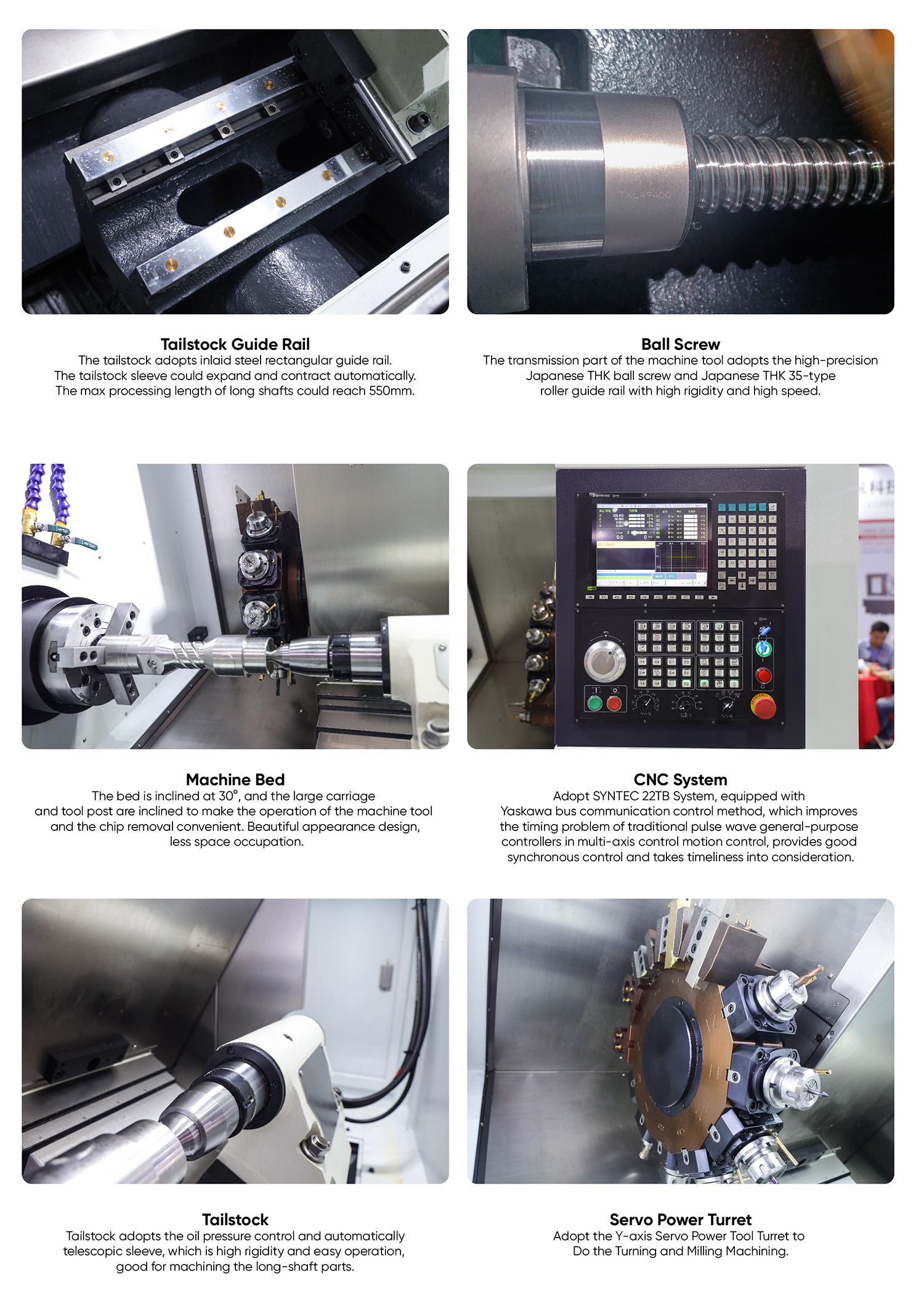

  • Servo Tailstock: Servo motor-driven with ball screw transmission for programmable positioning and torque control.
  • X/Y/Z Drive: Utilizes C3-grade Japan THK ball screws and P-grade Japan THK linear roller guides on all axes for high dynamic performance.
  • Bed Structure: Box-type horizontal cast iron bed with high-grade, low-vibration, and high-rigidity properties, ensuring excellent mechanical stability and precision retention.
  • Feed System: Equipped with Japanese THK ball screws and roller guides (Type 45 for Z-axis).
