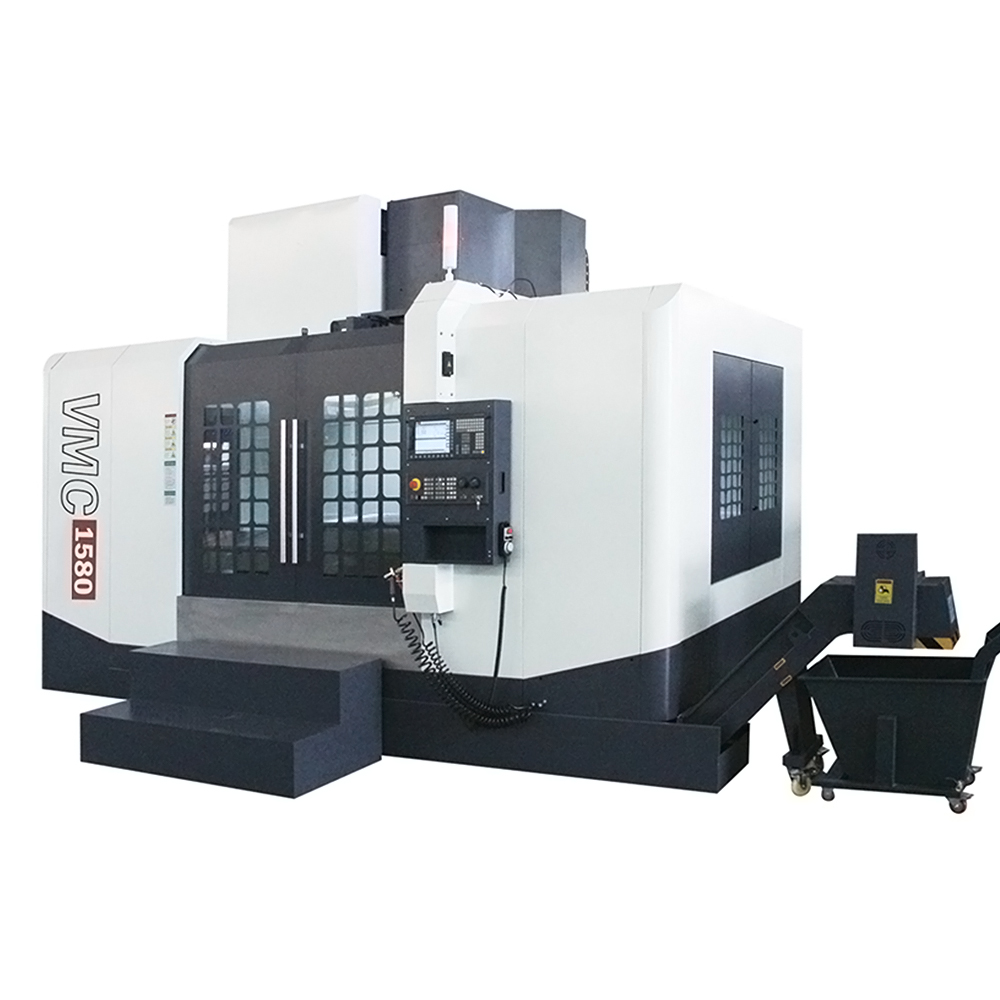

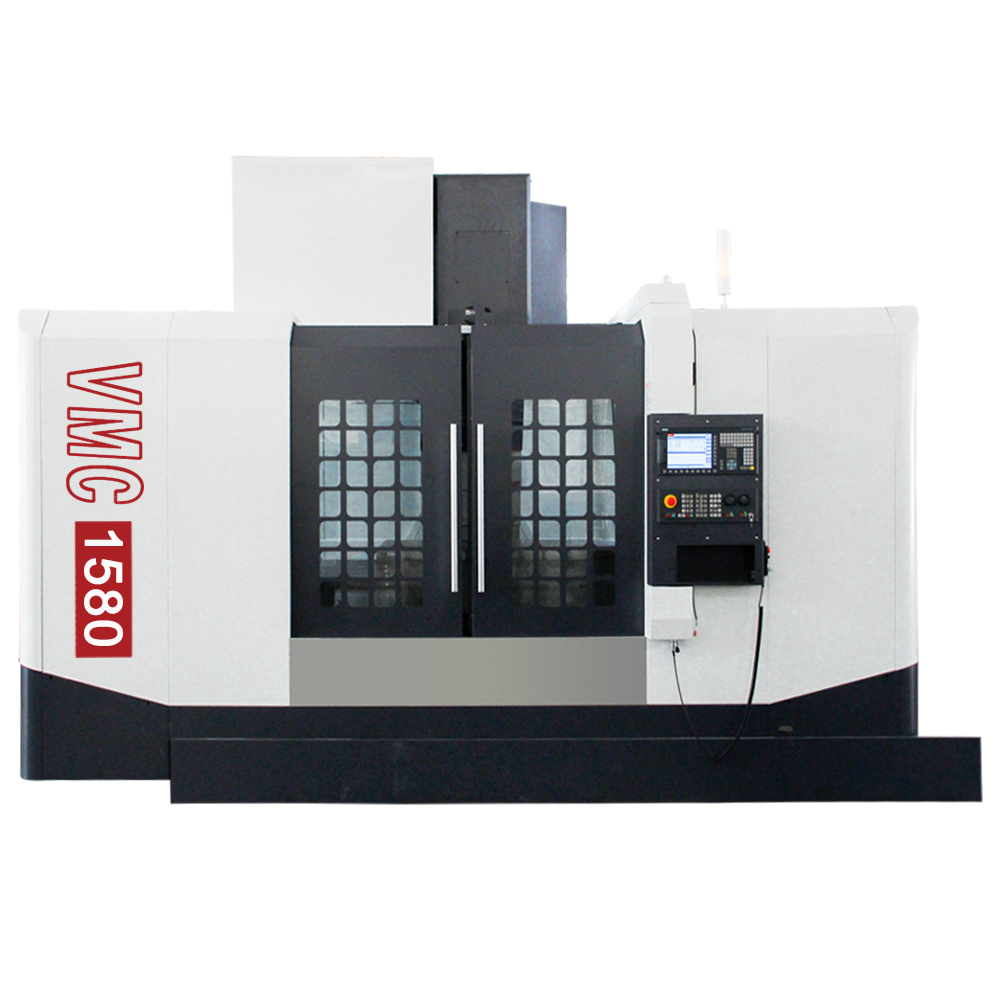

| Specification | Unit | VMC 1580 |

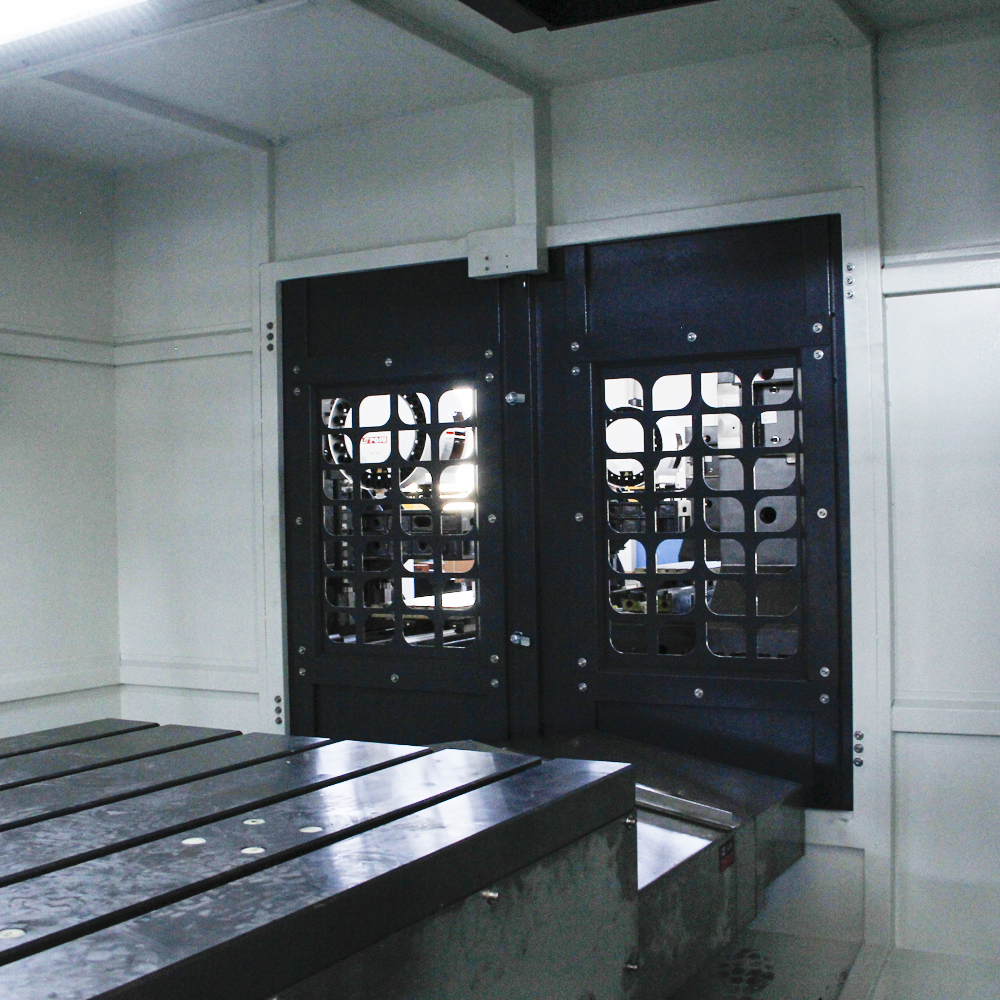

| Table size | mm | 1700×800 |
| T slot(N*W*D) | mm | 5/22/135 |
| Table max.loading | kg | 1500 |
| X/Y/Z axis travel | mm | 1500/800/700 |
| Distance fom spindle nose to table suface | mm | 130-830 |
| Distance from spindle center to column | mm | 810 |
| Spindle type | – | BT50 φ155 |
| Spindle motor | kw | 15/18.5 |
| Spindle speed | rpm | 8000(OPT.10000) |
| Rapid moving speed | m/min | 20/20/15 |
| Cutting feed | mm/min | 1-8000 |
| Positioning precision | mm | ±0.004 |
| Re-positioning precision | mm | ±0.003 |
| Tool magazine type | – | 24T Disc type |
| Max.tool weight | kg | 18 |
| Max.tool length | mm | 350 |
| Max.tool diameter | mm | φ110/220 |
| Tool changing time | sec | 2.91 |
| Overall Size | mm | 5300×3530×3500 |
| Weight | kg | 14500 |
①FANUC Oi MF CNC controller

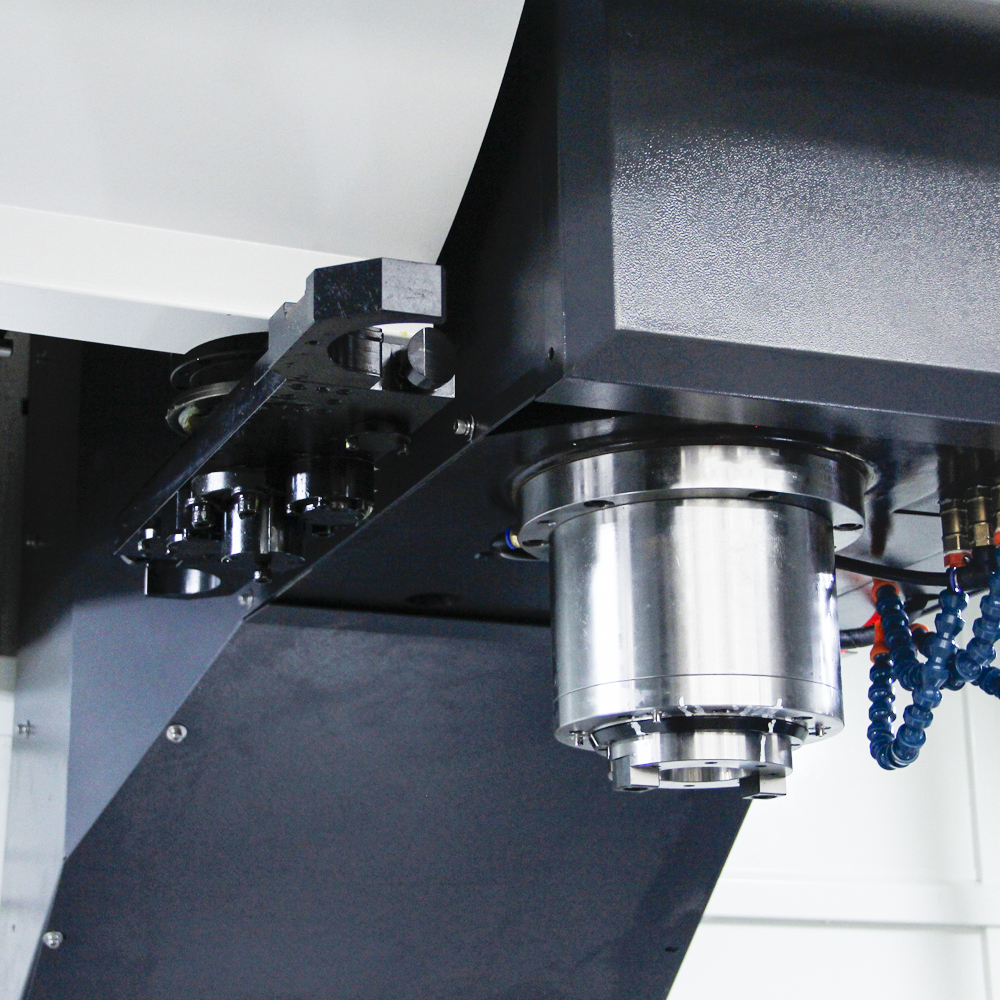

②Taiwan spindle 8000rpm
③Automatic lubrication system
④Cooling system
⑤Working lamp
⑥Three-color Alarm light
⑦Water gun/Air gun
Submit your machining requirements for a custom solution proposal within 24 hours.
①FANUC Oi MF CNC controller
②Taiwan spindle 8000rpm
③Automatic lubrication system
④Cooling system
⑤Working lamp
⑥Three-color Alarm light
⑦Water gun/Air gun
